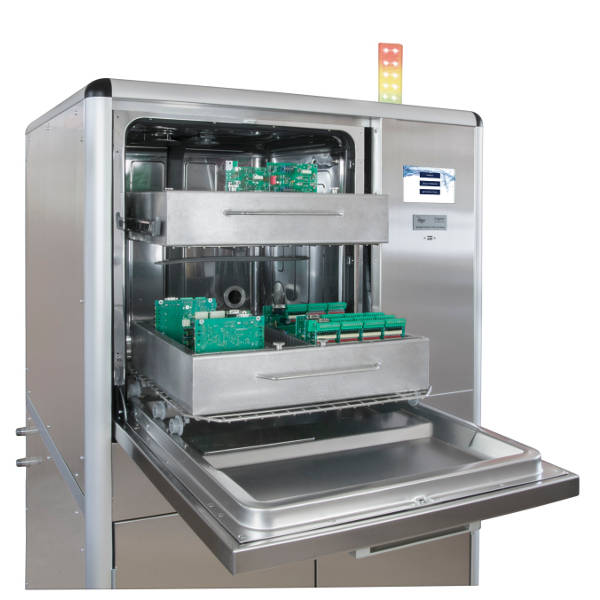

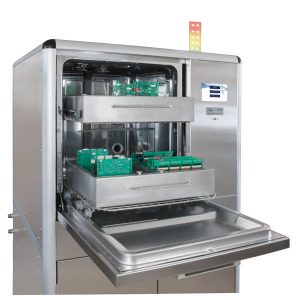

ELEKTRON 170 ULTRA II

Fully automatic single chamber cleaning system for PCB Assemblies, Misprints and Stencils.

Features

  • MixAssist® system – easy way of accurate mixing water with cleaning agent
  • Fully automatic process: cleaning – rinsing – drying
  • 100% stainless steel design
  • Made in Slovenia

Applications

  • PCB Assemblies
  • Misprints
  • Stencils

More info

Cepter ELEKTRON 170 ULTRA II is a compactly designed precision cleaning system in a full stainless steel finish with integrated smart solutions to achieve high productivity and low operating costs. It is completely engineered and produced in Slovenia.

Process description:

Cepter ELEKTRON 170 ULTRA II is a fully automatic single chamber cleaning system.

25 liter preheated loop tank for cleaning agent is installed to filter detergent after each washing process to be prepared for the next cycle.

There is a small loss of cleaning agent in the loop tank after each cleaning cycle. Installed dosing pump supplys missing quantity of fresh agent from 10 liter stainless steel tank to loop tank to ensure there is always exactly the same level of cleaning agent in the loop tank.

Standard equipment

-            Single chamber
-            2 tanks: loop tank + cleaning agent tank
-            Horizontal CSR® (Cepter Spray Rotor)
-            7'' touchscreen
-            Coarse filter inside process chamber
-            Fine 10'' filter in circuit
-            Cartridge for deionized and demineralized water
-            Cleaning fluid heater
-            2 Air heaters
-            Electric safety door locker
-            Fluid leakage tray in stainless steel
-            Leakage warning system
-            Complete machine body in stainless steel

Optional equipment

-            Compressed air drying system combined with CSR® (Cepter Spray Rotors) with special nozzles
-            MixAssist® system – easy & accurate mixing water with cleaning agent
-            Conductivity measurement
-            Status light
-            Mechanical carrier frame

Technical specifications

Technical data
Chamber dimensions W 510 mm x D 510 mm x H 630 mm
Cleaning levels 1 or 2
Volume loop tank 25 l
Volume cleaning agent tank 10 l
Exhaust connection Ø 70 mm
Power supply 400 V AC, 3x16A / 3 Ph / 50 Hz
Control system 7'' touchscreen
Temperature range cleaning adjustable up to 65°C
Temperature range rinsing adjustable up to 65°C
Temperature range drying adjustable up to 95°C
Filter system 2-stage: 1. coarse filter < 2 mm; 2. fine filter 10'' (1 – 100 µm)
Conductivity range 0 – 300 µS/cm
Noise level < 70 dB
Dimensions W 1.040 mm x D 1.080 mm x H 1.810 mm
Weight 295 kg

*Product availability, apperance, technical specifications and details are subjected to continuous development. As such, we accept no liability for errors, omissions or changes to this information.
